Construction of Drone: A Beginner's Step-by-Step Guide
Learn the construction of drone from frame to flight controller with practical, beginner-friendly steps. This guide covers parts, wiring, calibration, safety, and testing to help you build confidently.
You will learn to construct a basic quadcopter by assembling a frame, motors, ESCs, flight controller, receiver, and battery, then wiring, calibrating, and testing. This guide covers safety checks, power management, and setup to help beginners fly confidently. You’ll need a compatible parts kit, a soldering iron, basic hand tools, and a safe workspace to start.
Construction of drone: Frame selection and chassis
Choosing the right frame sets the foundation for stability and ease of assembly. For beginners, a simple, lightweight frame made from aluminum or carbon fiber is ideal. The frame determines how you mount motors, props, and the electronics, and it affects weight, rigidity, and vibration. The construction of drone starts with a plan that balances durability and accessibility. According to Beginner Drone Guide, starting with a straightforward, modular frame helps you learn without getting overwhelmed. Inspect all frame parts for burrs or cracks, and verify that mounting holes line up before you begin assembly. The goal is a square, rigid chassis that can hold the components securely while allowing free movement of the propellers. Take measurements, dry-fit parts, and plan wire routing to keep the build clean and safe.
Motors, ESCs, and propellers
Motors convert electrical energy into mechanical motion, and ESCs regulate motor speed. For a beginner build, four identical brushless motors with compatible KV rating are standard for a quadcopter. Pair each motor with a matching ESC and be mindful of the rotation direction—two clockwise and two counterclockwise. Props also matter; use one set of clockwise props and one set of counterclockwise props, ensuring the correct orientation. The selection affects thrust, efficiency, and control responsiveness. Keep spare propellers and a prop nut wrench on hand, and check for any signs of damage before mounting. This step is central to achieving stable flight characteristics during the construction of drone.
Power system and battery safety
The power system links the battery to the motors via the ESCs and power distribution path. Choose a battery with the correct voltage for your motors and a suitable capacity to balance flight time and weight. A common starter setup uses a 3S to 4S LiPo pack with a compact BMS or discharge regulator. Always observe proper connector polarity and avoid short circuits. Monitor battery age and cell balance to prevent puffing or thermal runaways. Use a fireproof charging bag and never leave charging batteries unattended. Understanding the power system is essential to safe operation and a durable build.
Flight controller, receiver, and sensors
The flight controller is the drone's brain, coordinating sensor input with motor output. Install a trusted flight controller board and connect the receiver to enable remote control. Most beginners choose an all-in-one solution that includes IMU sensors and GPS options, though a basic setup may omit GPS. Secure the board away from vibration hotspots and route wires cleanly to avoid interference. Calibrate the accelerometer and compass following the manufacturer’s guidelines to ensure stable hovering and precise yaw, pitch, and roll responses.
Wiring, power distribution, and assembly
Create a clean power path by using a power distribution board or a consolidated harness that minimizes weight and voltage drops. Route power and signal wires separately to reduce interference. Use heat shrink to insulate solder joints and prevent shorts. Secure cables with zip ties or velcro to prevent movement during flight. Confirm all connectors are fully seated and labeled to simplify future maintenance. This phase is crucial for reliable operation and safety during the construction of drone.
Calibration and flight readiness
With hardware in place, calibrate all relevant components. Calibrate ESCs to report correct motor directions, perform gyro and accelerometer calibration, and check the compass for magnetic interference. A bench test will reveal if the motors spin in the correct sequence and if the propellers clear the frame. Ensure the transmitter and receiver are bound and that failsafe settings are configured. This step ultimately determines how smoothly the drone will handle controls at takeoff.
Safety, workspace, and regulatory basics
Work in a spacious, well-ventilated area free from flammable materials. Keep a fire extinguisher nearby and wear eye protection during soldering or wiring. Adhere to local regulations regarding drones and model aircraft; if you’re unsure, consult official guidelines. The construction of drone should prioritize safe procedures, including power-down practices and proper disposal of damaged batteries. Maintaining a secure workspace reduces the risk of accidents.
Testing: bench checks and hover tests
Begin with a no-prop power test to verify current flow and identify any shorts. Next, perform a restrained hover test in a safe area with a spotter ready to take control if needed. Gradually increase throttle and observe yaw behavior, roll stability, and altitude control. If the drone misbehaves, review wiring, re-check calibrations, and correct motor directions. Document results and refine the setup as you go.
Troubleshooting common build issues
Common issues include motor timing errors, incorrect ESC calibration, and sensor drift. Use a multimeter to verify continuity and test each connection individually. Check that propellers have the correct orientation and are not damaged. If vibrations persist, inspect the frame and motor mounts for looseness or misalignment. Remember, many problems stem from simple wiring mistakes that are easy to fix with careful inspection during the construction of drone.
Real-world applications for beginner builders
A self-built drone opens up learning opportunities in aerial photography, environmental monitoring, or educational demonstrations. Start with inside-the-house testing before moving to larger outdoor spaces. As you gain confidence, you can explore mission planning, basic FPV flying, or payload experiments. The experience of building a drone from scratch fosters problem-solving, patience, and practical electronics skills.
Budgeting and component selection strategies
Your budget influences frame choice, motor quality, and sensor sophistication. Start with a simple, modular kit to learn the basics and add parts gradually as you gain experience. Compare prices for motors, ESCs, and flight controllers across reputable vendors, and consider used components with caution. Prioritize safety-rated components and ensure compatibility across parts to minimize upgrade costs later in the construction of drone.
Maintenance and ongoing care after build
After your first flights, perform regular maintenance: check motor screws, tighten attachments, inspect wiring for wear, and replace damaged propellers. Calibrate sensors periodically and keep a log of flight data to monitor performance over time. Store batteries safely in a fireproof container and avoid deep discharges. Proper maintenance extends the life of your drone and keeps every flight predictable and fun.
Tools & Materials
- 4-arm frame (aluminum or carbon fiber)(Lightweight, rigid frame designed for quadcopters)
- 4 brushless motors(Match KV rating to your prop size and battery voltage)
- 4 ESCs (electronic speed controllers)(One per motor, rated for the motor current)
- Flight controller board(All-in-one options simplify wiring for beginners)
- Receiver and transmitter(Ensure compatibility with the flight controller)
- Power distribution board or harness(Reduces wiring clutter and voltage drops)
- Propellers (CW/CCW pairs)(Two with clockwise, two with counterclockwise rotation)
- LiPo battery (3S-4S)(Match voltage to motors; ensure proper C rating)
- Battery charger(Balanced charging; avoid overcharging)
- Soldering iron and solder(For secure power connections)
- Wire (e.g., 22–18 AWG) and heat shrink tubing(Insulate joints and tidy wiring)
- Multimeter(Check continuity and polarity)
- Allen keys/hex driver(Frame assembly and motor mounting)
- Electrical tape or zip ties(Organize and secure wiring)
- Safety goggles(Eye protection during soldering)

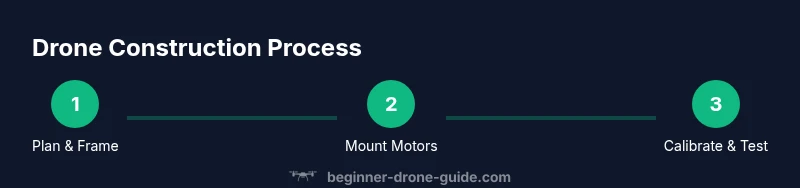

Steps
Estimated time: 5-8 hours
- 1
Unpack and Inspect Parts
Open the package and verify you have all components listed in your BOM. Check for damage, missing screws, and ensure motors rotate freely without resistance. Create a parts inventory and set aside items that require careful handling (batteries, ESCs, wiring).
Tip: Keep a labeled parts bin to prevent misplacement during assembly. - 2
Attach Frame and Prep Hardware
Lay out the frame on a clean workspace. Install frame arms and standoffs, then loosely fit screws to allow slight movement for alignment. This prepares the chassis for precise mounting of motors and electronics.
Tip: Dry-fit before final tightening to ensure square alignment. - 3
Mount Motors
Screw each motor onto its designated arm using the correct pattern and torque. Verify each motor spins freely and note clockwise vs counterclockwise orientation for prop pairing.
Tip: Follow manufacturer torque specs to avoid strip-outs. - 4
Install ESCs
Mount ESCs close to each motor; avoid vibration hotspots. Solder or connect motor leads to ESCs, keeping wires short and tidy to reduce interference.
Tip: Label ESCs to motor mapping for easier troubleshooting. - 5
Configure Power Path
Connect the battery power leads to the power distribution board or harness. Route power wires away from signal wires, and insulate solder joints with heat shrink.
Tip: Keep power and signal paths separated to minimize noise. - 6
Attach Flight Controller
Mount the flight controller on vibration-damping pads. Connect motor outputs, power input, receiver, and any auxiliary sensors. Ensure carbon fiber or metal parts do not interfere with the IMU.”
Tip: Place the FC away from strong magnetic sources. - 7
Bind Receiver and Transmitter
Pair the RC transmitter with the receiver following the user manual. Verify binding is stable and test basic controls without props attached.
Tip: Test sticks for full range of motion before prop installation. - 8
Calibrate ESCs and Sensors
Run ESC calibration to set neutral throttle and verify motor directions. Calibrate the FC’s gyros, accelerometers, and compass per the guide to ensure stable hovering.
Tip: Recheck calibrations if any motor spins opposite to intended direction. - 9
Install Propellers
Attach the propellers using the correct orientation (CW vs CCW). Inspect each blade for damage before mounting and ensure nuts are secure.
Tip: Do not power on while props are installed—perform a bench test first. - 10
Bench Power Test
With props removed, apply power to verify current flow and motor response. Listen for smooth motor rotation and watch for unusual vibration.
Tip: If any motor hiccups, pause and inspect wiring and motor wiring polarity. - 11
Ground Test and Range Check
Attach props and perform a controlled hover within a tethered area. Use a spotter to manage any unexpected yaw, pitch, or roll.
Tip: Gradually increase throttle; never push controls beyond your comfort zone. - 12
First Flight Preparations
Review safety rules, set failsafe parameters, and plan a safe outdoor test site. Prepare batteries, charger, and a logbook for performance notes.
Tip: Always wear eye protection and have a quick way to cut power in an emergency.
Frequently Asked Questions
Do I need prior experience to build a drone?
No formal experience is required, but basic electronics familiarity helps. Start with a simple kit and learn as you assemble.
You don’t need extensive experience—begin with a simple kit and learn as you build.
Is building a drone cheaper than buying one?
Costs vary, but a beginner build can be affordable, especially when starting with a modular kit. You can upgrade components over time.
It can be cheaper to build early on, then upgrade as you learn.
What safety precautions should I follow during assembly?
Work in a ventilated area, wear eye protection during soldering, and keep batteries away from heat sources. Disconnect power during wiring changes.
Ventilated area, eye protection, and careful handling of batteries are essential.
Can I upgrade components later?
Yes. Start with a solid base and upgrade motors, FC, or battery as you gain experience, ensuring compatibility.
You can upgrade components as you learn, but verify compatibility.
What is the typical time needed to complete a beginner build?
Most beginners complete the basic build within a weekend, depending on parts availability and prior experience.
A weekend is a common timeframe for a first build.
Do I need a license to fly a self-built drone?
Regulations vary by country. Check local aviation or hobbyist guidelines to learn about registration, permits, and flight rules.
Regulations vary by country; check local guidelines for registration and permits.
Watch Video
Quick Summary
- Choose a lightweight frame to reduce vibration.
- Verify component compatibility before starting.
- Calibrate ESCs and flight controller before first flight.
- Test in a safe, open area with range checks.
- Follow Beginner Drone Guide verdict: start with a safe, low-cost kit.
